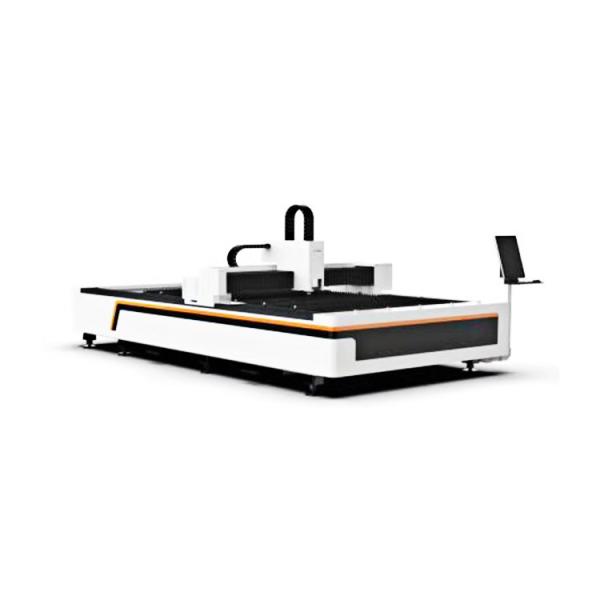

2021 1000W 2000W 3000W 4kw CNC Bottom Price Fiber Laser Cutting Machine
The gantry structure of the machine tool has good rigidity and can bear high speed and acceleration;
| Model | HN-1530 |
| Working area | 1500mm*3000mm |
| Laser type | Fiber laser |
| Rated laser power (optional) | 1000W |
| Traditional system | Gantry double drive structure |
| lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD, DXF(etc) |
| work environment | 0-40 ℃, humidity ≤ 80%, no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V / 50Hz / 60Hz |
| Outline size | 4820mm*2320mm*1750mm |
| Total weight approximately | 4000KG |
Product details
The three in one proportional valve imported from Germany can withstand high air pressure and is stable and durable; At the same time, different auxiliary gases are connected, which can be automatically switched when used; More accurate gas flow and pressure control, good cutting quality, less gas loss, help you save gas and cost.
Applications & samples
It can cut many kinds of metal plates and pipes. It is mainly suitable for the fast cutting of stainless steel, carbon steel, manganese steel, galvanized plate, various alloy plates, rare metals and other materials.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
FAQ
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
8.We will provide the consumable parts at an agency price.
9.24 hours online service, free technical support.
10.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions,please kindly tell me.
