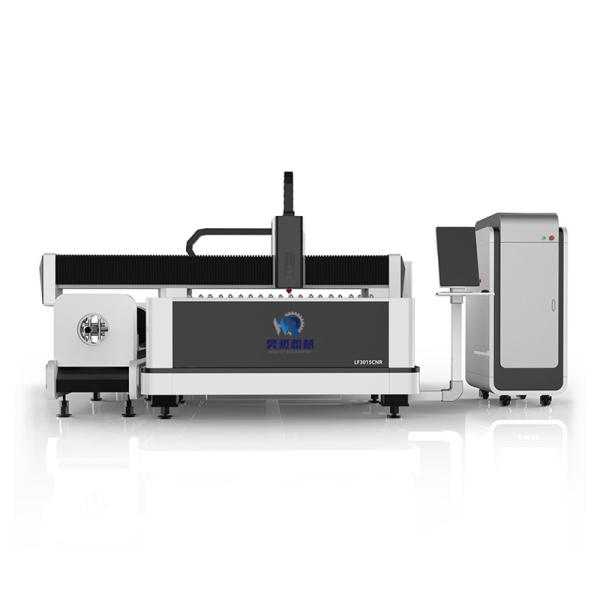

3000 X 1500 1500W Fiber Laser Cutter For Metal Aluminum Pipe And Tube

Brand Name : Honest

Model Number : HN - 1530

Certification : CE ISO

Place of Origin : China

MOQ : 1 Set

Price : 20000 USD/ Set-35000 USD / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Set / Month

Delivery Time : 5-8 Working Days

Packaging Details : Wooden Package

Working area : 3*1.5 M

Laser source : IPG/ Raycus/ Max

Cutting thickness : Materials,0-15mm

Control system : CYPONE system/CYPCUT system

Keyword : Fiber Laser Cutting Machines for Metal

Product name : metal/carbon steel/brass fiber laser cutting machine for sale

After-sales service provided : Engineers available to service machinery overseas

Application : steel metal tube fiber laser cutting machine with rotary device

Contact Now

3000 X 1500 1500W Stainless Carton Aluminum Pipe And Tube Fiber Laser Cutting Machine

►Machine overview

1 cutting quality is good, because the laser spot is small, high energy density, cutting speed, so laser cutting can get better cutting quality.

2. The incision is narrow, the two sides of the slit are parallel and the verticality of the surface is good, and the dimensional accuracy of the cutting parts is high. Cutting surface smooth and beautiful, even as the last processing process, without mechanical processing, parts can be directly used.

3. After laser cutting, the width of the heat affected zone is very small, the performance of the material near the slit is almost not affected, and the workpiece deformation is small, and the cutting precision is high.

4. Cutting speed, high efficiency.

5. Contact cutting, laser cutting nozzle and workpiece no contact, almost no tool wear.

3000 X 1500 1500W Fiber Laser Cutter For Metal Aluminum Pipe And Tube

►Machine Data

NAME LASER CUTTING MACHINE
MODEL HN-1530-1000W
Maximum running speed 70m/min
Laser wavelength 1080 nm
Minimum cutting line width 0.1mm
Rated output power 50--1000W
X, Y axis positioning accuracy ≤±0.015㎜
Repeated positioning accuracy of worktable ≤±0.015㎜
Maximum load of worktable 500KG
Effective processing area 1500*3000mm,
Z axis travel 120mm
Area 4800*2300*1800 MM
Machine power 12KW
Chiller 2kw
Power supply 380v±10%
Red light positioning provide

►Application

Applicable material range:
It can meet the cutting needs of carbon steel, stainless steel and other metal plates. It is an ideal choice for the processing of medium and thin plates.

Industry application:
Laser cutting machine is widely used in automobile manufacturing, kitchenware industry, sheet metal processing, advertising industry, machinery manufacturing, chassis cabinet, elevator manufacturing, fitness equipment and other industries with its wide cutting range, high cutting speed, narrow cutting seam, good cutting quality, small heat affected area, flexible processing and other advantages. But the general laser cutting machine is mainly divided into two kinds of metal cutting and non-metal cutting, there are also mixed cutting, metal and non-metal can be, but not recommended. Different laser cutting machine production enterprises produce different types of laser cutting machine, focus is also different

3000 X 1500 1500W Fiber Laser Cutter For Metal Aluminum Pipe And Tube

►Product Advantage

1) Excellent beam quality: smaller focused spot, finer cutting lines, higher work efficiency and better processing quality;


2) Extremely high cutting speed: 2 times of the same power CO2 laser cutting machine;


3) Extremely high stability: The world's top fiber laser is used, with stable performance, and the service life of key components can reach 100,000 hours;


4) Extremely high electro-optical conversion efficiency: fiber laser cutting machine has 3 times higher electro-optical conversion efficiency than CO2 laser cutting machine, which is energy-saving and environmentally friendly;


5) Very low cost of use: the power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;


6) Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; it can save a lot of maintenance costs;


7) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;


8) Super flexible light guide effect: small size, compact structure, optical fiber transmission, easy to flexible processing requirements.

3000 X 1500 1500W Fiber Laser Cutter For Metal Aluminum Pipe And Tube
