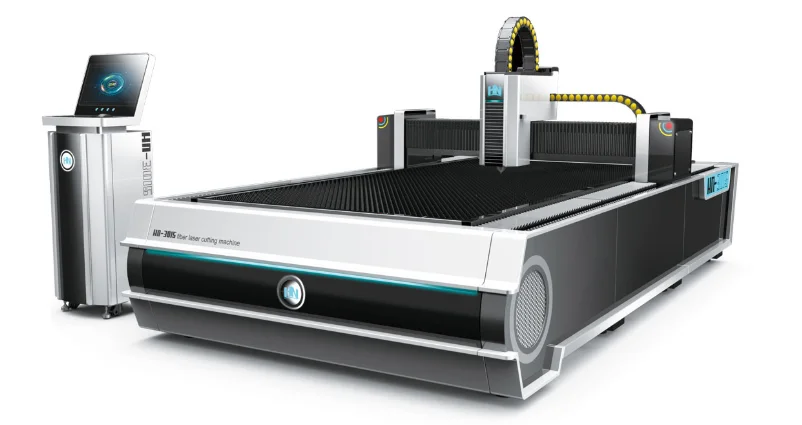

Raycus 1080nm 3000W Fiber Laser Cutter For Aluminum Pipe And Tube

Name: Raycus 1080nm 3000W Fiber Laser Cutter For Aluminum Pipe And Tube
Brand: Honest
Price: 20000 USD

China Raycus 1080nm 3000W Fiber Laser Cutter For Aluminum Pipe And Tube factory

Brand Name : Honest

Model Number : HN - 1530

Certification : CE ISO

Place of Origin : China

MOQ : 1 Set

Price : 20000 USD/ Set-35000 USD / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Set / Month

Delivery Time : 5-8 Working Days

Packaging Details : Wooden Package

Cnc or not : cnc

Laser wave length : 1080nm

Control system : Cypcut

Laser source : Raycus or IPG or Max

Keyword : Laser cutting machine for matel

Product name : 1530 Fiber laser cutting machine with 2000W power

Working area : 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm

Warranty : 2 Years Raycus Aluminum Laser Cutting Machine

Contact Now

Product Description

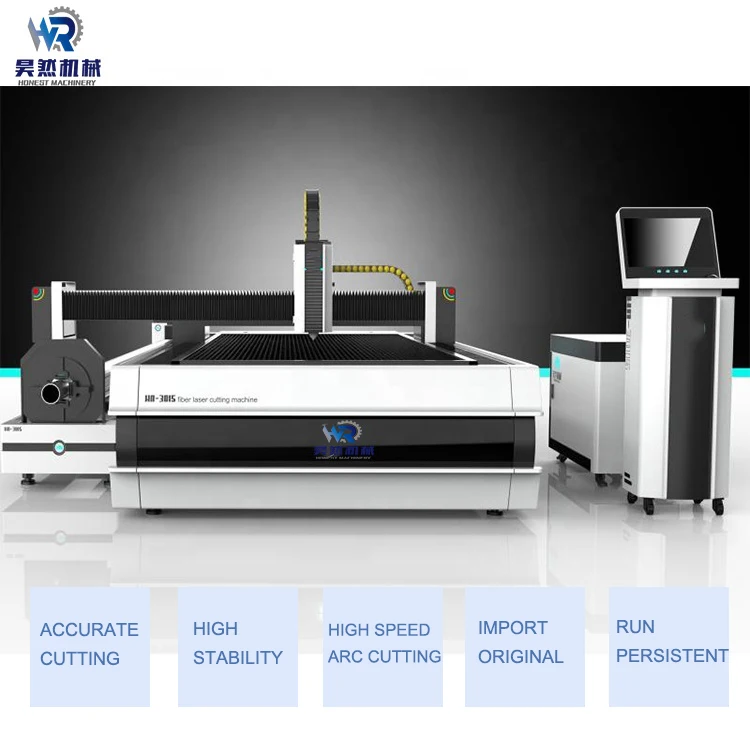

Raycus 1080nm 3000W Fiber Laser Cutter For Aluminum Pipe And Tube

Product Paramenters

Product Features
*Product Name	3000x1500 1300x2500 3015 1325 cnc fiber laser cutting machine for metal cutting steel iron copper aluminum
*Brand	HONEST
*Model	HN-3015
*Laser power	500W/1000W/1500W/2000W/3000W/4000W/6000W
*Working Area	3000X1500MM,1000X2000MM,1300x2500mm,2000x4000mm,customized
*Cutting Thickness	0.2-20mm
*Cutting Speed	1-120m
*Cooling Way	water cooling/air cooling
*Processing Material	stainless steel/carbon steel/galvanized steel/aluminum/copper/iron and so on all kinds of metal
*Laser head	raytools
*Laser source	raycus, max, ipg and so on

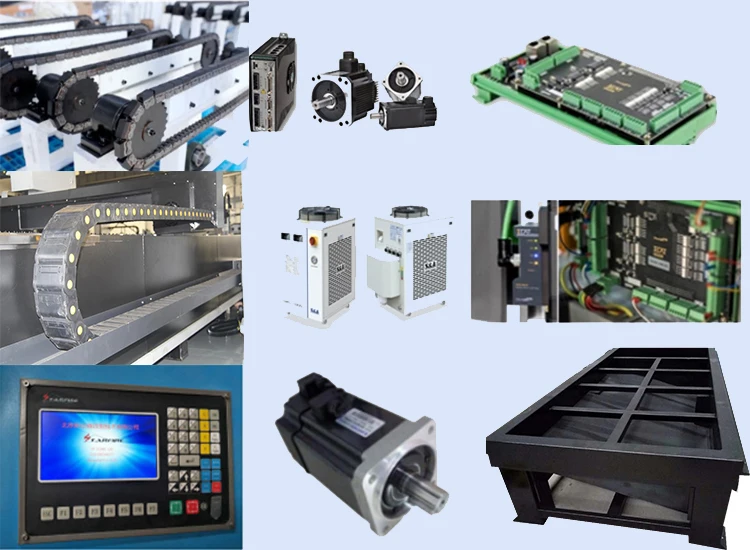

Details Images

Application Example

APPLICATION
 Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets,mechanical parts, kitchenware, sanitary ware, auto parts, machinery manufacturing,metal crafts, saw blades, electrical parts,glasses industry, spring sheets, circuit boards,electrical Kettles, medical microelectronics, hardware, doors and windows and other industries.

The advantages of fiber laser cutting machine:
Extremely high cutting speed: twice as muchas the C02 laser cutting machine with the same power, and at the same time meeting the cutting requirements of plate and pipe
Extremely high stability: The service life of key components can reach 100,000 hours, which greatly saves costs;
Extremely low use cost: The power consumption of the whole machine is only 20%-30% of the similar Co2 laser cuttingmachine;
extremely low maintenance costs: fiber optic transmission, no need for reflective lenses, saving a lot of maintenance costs;
The product is easy to operate and maintain, with optical fiber transmission,no need to adjust the circuit

Packing & Delivery

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15-30 working days after payment.

FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
 Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
 Q2: When I got this machine, but I don’t know how to use it. What should I do?
 We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
 Q3: If some problems happen to this machine during warranty period, what should I do?
 We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
 Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
 1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
 2)Your materials.
 Metal/Acrylic/plywood/MDF?
 3)You want to engrave or cut?
 If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser laser power.nt
 Currency:USD,CNY;
 Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
 Language Spoken:English,Chinese

Product Tags:

stainless steel laser cutting machine

laser sheet cutting machine

fiber laser metal cutting machine

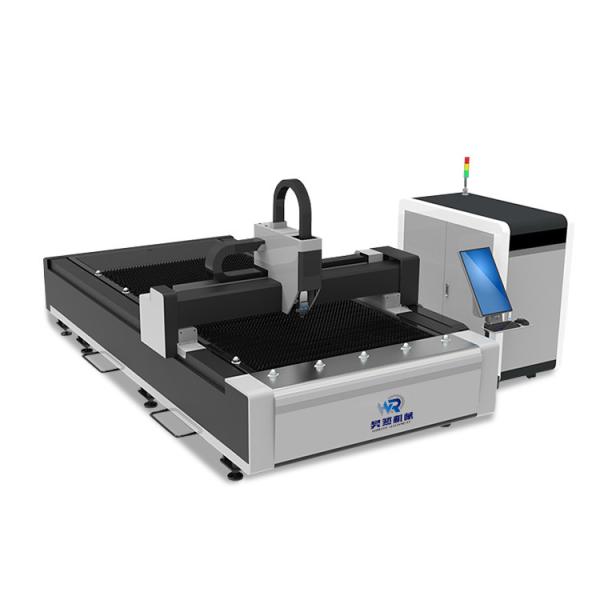

Raycus 1080nm 3000W Fiber Laser Cutter For Aluminum Pipe And Tube Images
